Cleaning machines

SWS series

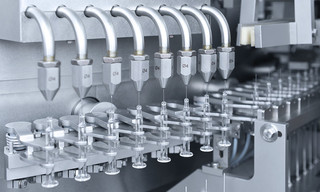

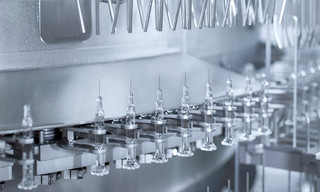

The SWS cleaning machine is used for pharma-compliant wet cleaning of disposable syringes. The containers are conveyed through the work area very gently in an intermittent flow. By using the pressure-controlled rinsing and spraying system and various cleaning media, optimal pharma-compliant cleaning of all containers is assured. The order of use of the cleaning media is freely selectable. The line system is configured so that the different cleaning media do not mix.

HIGHLIGHTS

Effective and thorough cleaning
Pharmaceutical design
Cleaning schematic is freely selectable
Cleaning media cannot mix

Versions

Type of machine	Output	Processing range
SWS1071	up to 18,000 items/h	Container diameter: 6.85 - 10.85 mm Container height: max. 125 mm
SWS1080	up to 24,000 items/h	Container diameter: 6.85 - 10.85 mm Container height: max. 125 mm

Technical data depend on machine equipment and packaging.

Properties

Gentle container transport

Easy and centralized operation

Optional extras

Water recycling station for the recirculation, regeneration and multiple use of a cleaning medium
Preconfigured for a 3rd cleaning medium
ECOwash – container-optimized cleaning needles
System for silicone treatment of the glass inner walls of containers using atomizer nozzles
System for silicone treatment of needles
"no container – no silicone" check system
Needle shield feed and application station
Final insertion station for needle shields
Needle passage check station
Station to check for presence of syringe caps
Station to check for bent syringe caps
Purging of the water lines downstream of the cycle valve
Pressure control
Pressure monitoring
Fine and HEPA filters
Differential pressure monitoring system for filters
Transition and linkage to machine downstream
Service portal vision system (cleanroom compatible)
A range of checking and alarm devices and counters
Software upgrades
Qualification (IQ/OQ)

Request

Your name*

Your company*

Your phone number

Your email address*

Your address*

Your Country*

Your message

I took note of the Privacy Policy. *

The ECOwash system by Bausch + Ströbel ensures optimal cleaning of all containers while significantly reducing the consumption of cleaning media. This is achieved by using a combination of special cleaning needles which are developed and/or adapted in comprehensive trials to meet your specific requirements. The ECOwash (Efficient Customized Operation) technology has the following advantages:

Optimized cleaning in hard-to-reach areas
Reduction in water consumption: up to 40%
Reduction in residual moisture content: up to 70%
Reduction in air consumption: up to 20%
Reduction in noise when blow-drying containers: up to 50%
High energy efficiency

This technology meets the applicable GMP requirements and the FDA guideline on electronic data records (21 CFR Part 11). This technology can be retrofitted to existing rinsing machines.
